WEI 75t Multipurpose Drill Rig Package
OIL • GAS • MINERAL • WATER
Set up and available to inspect now. EOI closes 15th August.

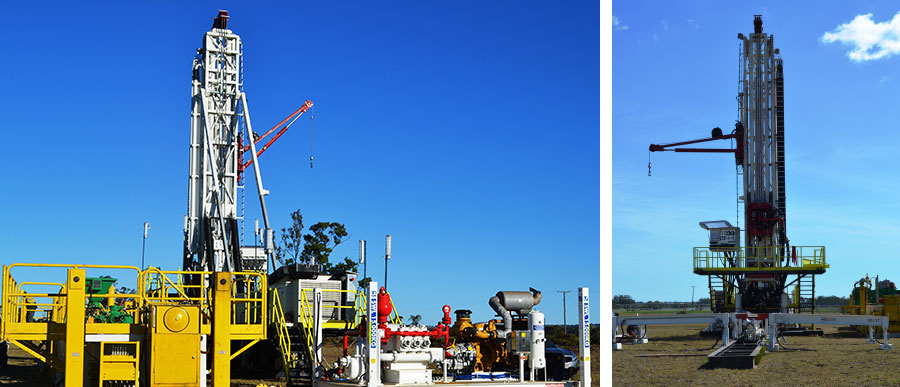

DSC 0063

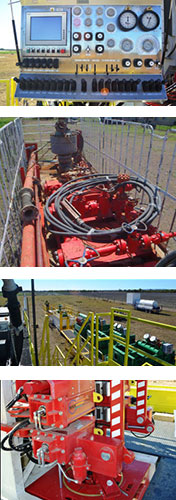

DSC 0063 Vert

Drill Central are seeking expressions of interest from suitable parties to purchase the WEI 75t Multipurpose Drill Rig Package. One of the largest Multi-purpose rigs in Australia.

Features:

  • Brand new with commissioning completed
  • Road registration and compliance already completed – is trailer mounted
  • 75t standard build with engineered 85t pull over-ride function
  • Built in coring head for deep wire-line
  • Directional capacity
  • Slant capacity
  • Vertical capacity
  • API Certified with third party inspection from DNV
  • IECEX and ATEX compliant
  • Drilling Parameter and Fluid Software with remote log in
  • No craneage or skid handling required all jack up including mud pumps and mud system
  • Full set up with mud pumps and mud system ready to go with one year’s critical spares including spare rotary head


BOP

  • 1 x Integrated  7-1/16” 5K - Annular Preventer with test stump
  • 1 x 7-1/16” x 5K x 1” NPT port & 3-1/2”IF box Stump Test unit for BOP


Koomey

  • 1 x 4 Station x 3K HPU Control Unit complete with Control Panel, 25m Umbilical connection, with full Certification & Documentation package
  • 8 x 3/4” ID x 3K x 20m x 3/4” NPT Male Threads Fire Flex Hose
  • 10 x 3/4” NPT female x 5K Flat Faced Stucchi Flat Faced Couplings



Choke

  • 1 x 3-1/8” x 5K Flanged Manual Gate Valve
  • 1 x 3-1/8” x 5K HCR Flanged Gate Valve
  • 1 x 3-1/8” x 5K x 6m x Stainless Steel Coflex Choke Manifold Hose
  • 1 x 3-1/8” x 5K Flanged Twin Manual Choke Manifold


Mud Cross

  • 1 x 7-1/16” x 3K X 7-1/16” x 5K Mud cross with 1 x 2-1/16” x 5K API Flange outlet & 1 x 3-1/8” x 5K API



Flange

  • 1 x 2-1/16” x 5K Flanged Manual Gate Valve
  • 1 x 2-1/16” x 5K HCR Flanged Gate Valve
  • 1 x 2-1/16” x 5K Check Valve
  • 1 x 2-1/16T” x 5K Flange X 2” x Fig.1502 (female half Wing)
  • 1 x 2” ID x 5K x 6 m Kill Line Hose with integral 2” x Fig.1502 Hammer Unions



Miscellaneous

  • 1 x 5K pressure testing unit
  • 1 x Champion 125 cfm Compressor

Also includes Mud Pumps, Mud System, Drill pipe, Drill Collars etc.


Want to know more? Please email sales@drillcentral.com.au and request more information or phone 0402 106 432.
